DataLogic PowerScan PD9531-DPM Barcode Scanner
Datalogic PowerScan PD9531-DPM -

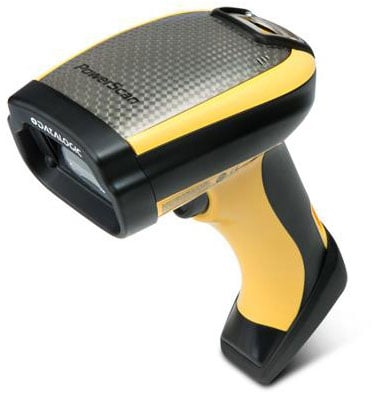

The Datalogic PowerScan 9531-DPM Evo hand held area imager scanner is engineered to read codes marked with DPM (Direct Part Marking). This PowerScan 9531-DPM rugged scanner has the latest optics and software from Datalogic that makes scanning intuitive and easy. Capable of reading standard and high density barcodes, the 9531-DPM emites a soft pulse while illumination light results in reduced flashes, making this scanner very gentle to the eyes. Omnidirectional reading and image capture in an ergonomic shape make the 9531-DPM suitable for all day usage. The 9531-DPM is ideal for applications on the manufacturing shop floor such as work in progress, sub-assembly, component tracking, quality control, line inventory control, and more.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$487.68
Get help from a Barcoding Expert!
Accessories For DataLogic PowerScan PD9531-DPM Barcode Scanner
Included Cables
- USB (10)
Kit Options
- Scanner Only (2)
- Scanner with Cable and Stand (2)
- Cable Only (4)
Interface Options
- Bluetooth (1)
- USB (3)
- Serial (5)
- Keyboard Wedge (1)
Category
- Bluetooth Barcode Scanner (1)
- Corded Barcode Scanner (10)
- Cordless / Wireless Barcode Scanner (1)
- Direct Part Marking (DPM) Barcode Scanner (3)
- Handheld Barcode Scanner (10)
- Inventory Barcode Scanner (10)
- Serial (RS-232) Barcode Scanner (4)
- USB Barcode Scanner (3)
- iPhone, iPad and Android Barcode Scanner (1)
DataLogic PowerScan PD9531-DPM Barcode Scanner Options
-
Datalogic PD9531-K2 Barcode Scanner
Corded Barcode Scanner, Datalogic PowerScan PD9531, 2D Area Imager, Rugged, Handheld, RS-232, Black/Yellow, Standard Performance, 5VDC. Kit inc. Scanner and Cable CAB-434.In Stock$487.68 -
Datalogic PD9531-HPEK2 Barcode Scanner
Corded Barcode Scanner, Datalogic PowerScan PD9531, 2D Area Imager, Rugged, Handheld, RS-232, Black/Yellow, High Performance, 10-30VDC. Kit inc. Scanner and Cable CAB-434. -
Datalogic PD9531-HPE Barcode Scanner
Corded Barcode Scanner, Datalogic PowerScan PD9531, 2D Area Imager, Rugged, Handheld, USB Connection, SCANNER ONLY, Black/Yellow, High Performance, 10-30VDC -
Datalogic PD9531-HP Barcode Scanner
Corded Barcode Scanner, Datalogic PowerScan PD9531, 2D Area Imager, Rugged, Handheld, USB/Serial/KBW Multi-Interface, SCANNER ONLY, Black/Yellow, High Performance, 5VDC, Interface Cables Sold Separately -
Datalogic PD9531-HPK1 Barcode Scanner
Corded Barcode Scanner, Datalogic PowerScan PD9531, 2D Area Imager, Rugged, Handheld, Black/Yellow, High Performance, 5VDC. Kit inc. Scanner and Cable CAB-550. -
Datalogic PD9531-K1 Barcode Scanner
Corded Barcode Scanner, Datalogic PowerScan PD9531, 2D Area Imager, Rugged, Handheld, Black/Yellow, Standard Performance, 5VDC. Kit inc. Scanner and Cable CAB-550. -
Datalogic PD9531-HPK2 Barcode Scanner
Corded Barcode Scanner, Datalogic PowerScan PD9531, 2D Area Imager, Rugged, Handheld, RS-232, Black/Yellow, High Performance, 5VDC. Kit inc. Scanner and Cable CAB-434. -
Datalogic PBT9501-HPRB Barcode Scanner
Cordless Barcode Scanner, Datalogic PowerScan PBT9501, 2D Area Imager, Rugged, Handheld, Bluetooth, 100m/328ft Communication Range, Bluetooth Connection, SCANNER ONLY, Black/Yellow, IP65, High Performance, Liquid Lens, Removable Battery -
DataLogic PD9531-DPMK1 Barcode Scanner
Corded Barcode Scanner, Datalogic PowerScan PD9531, 2D Area Imager, Rugged, USB, Black/Yellow, Direct Part Marking (DPM), 65ft Auto-Range. Kit inc. Scanner and Cable CAB-550.In Stock$1,023.31 -
DataLogic PD9531-DPM Barcode Scanner
Corded Barcode Scanner, Datalogic PowerScan PD9531, 2D Area Imager, Rugged, Handheld, USB Connection, SCANNER ONLY, Black/Yellow, Direct Part Marking (DPM), All Cables Sold SeparatelyIn Stock$1,052.43 -
Datalogic PD9531-DPMK2 Barcode Scanner
Corded Barcode Scanner, Datalogic PowerScan PD9531, 2D Area Imager, Rugged, Handheld, RS-232, Black/Yellow, Direct Part Marking (DPM). Kit inc. Scanner and Cable CAB-434.
DataLogic PowerScan PD9531-DPM Barcode Scanner Model Overview
The POWERSCAN™ 9501-DPM EVO from Datalogic is a rugged handheld scanner designed for seamless and efficient Direct Part Marking (DPM) decoding. Engineered with advanced optics and software, it effortlessly reads codes directly imprinted on various surfaces using technologies like laser etching and inkjet printing. With a strong reading range and intuitive aiming system, the scanner enhances productivity in manufacturing settings, ensuring accurate capture of high-resolution codes in challenging environments.
Key Features:
Specifications:
Key Features:
- Enhanced Decoding Software for diverse DPM technologies
- High Density Optics for reading small, high-res codes
- Ergonomic Design with Motionix™ technology for automatic mode switching
- Soft Pulsed Illumination for user comfort and reduced eye strain
- IP65 Protection for water and dust resistance
Specifications:
- Decoding Capability: 1D/Linear Codes, 2D Codes (Data Matrix, QR Code, etc.)
- Electrical: Operating Current: 350 mA; Input Voltage: 5 VDC +/- 10%
- Environment: Drop Resistance: 50 drops from 2.0 m; Operating Temp: -20 to 50 °C
- Dimensions: 21.2 x 11.0 x 7.4 cm; Weight: 330 g
- Connectivity: USB, RS-232, Ethernet, Bluetooth® 3.0
- Warranty: 3-Year Factory Warranty
