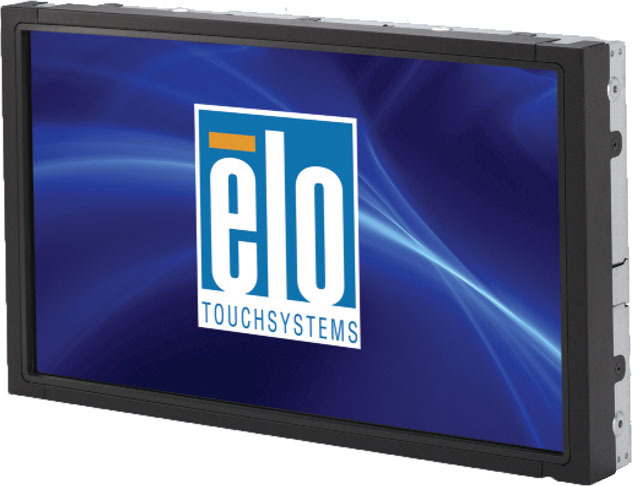

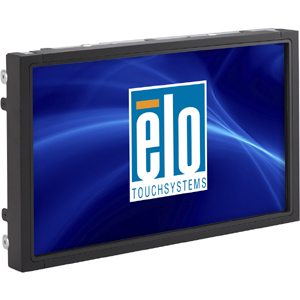

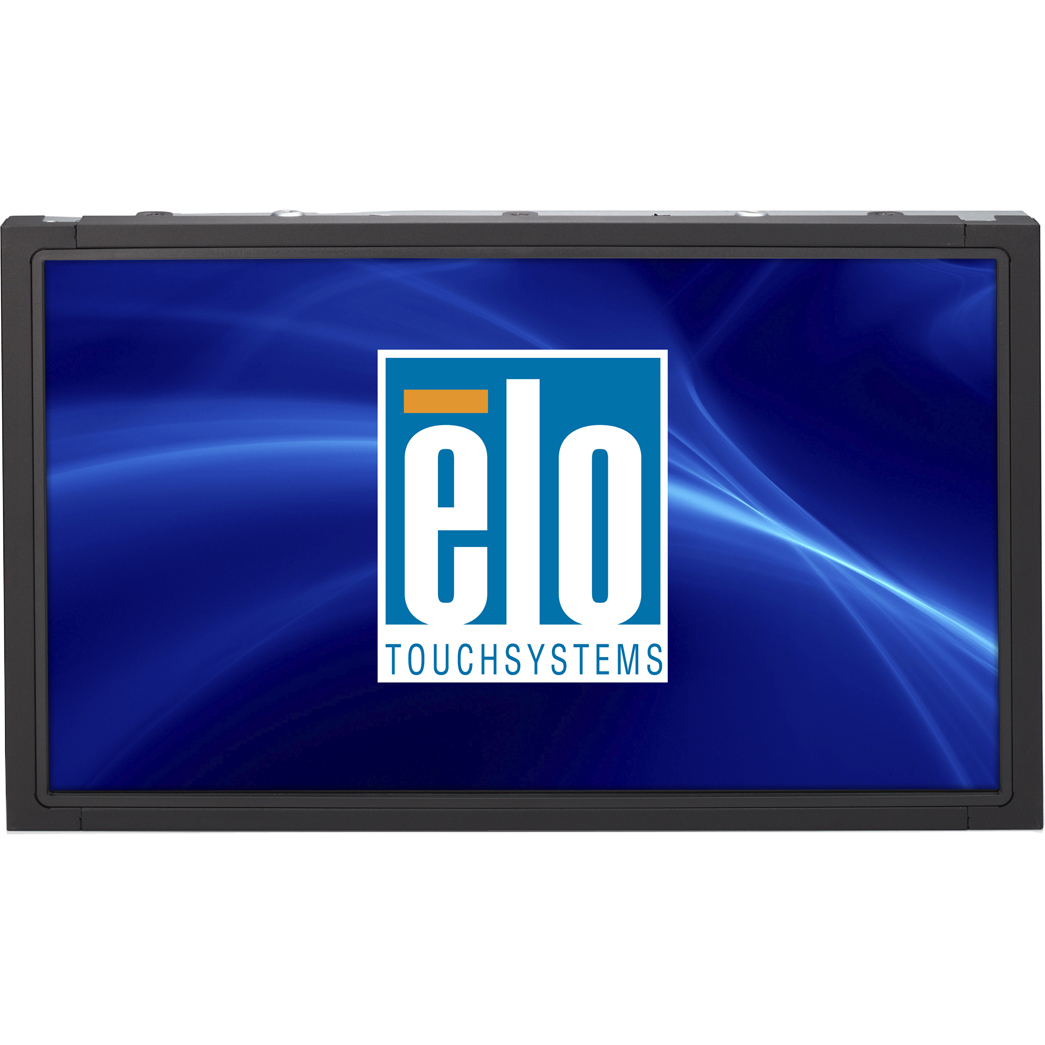

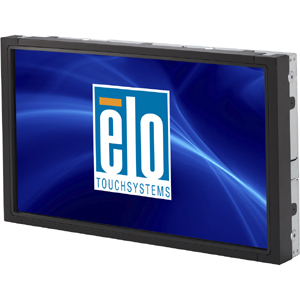

Elo E606625 Touchscreen

Part Number: E606625

Model: 1541L

Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Screen Size Class

15"

Viewable Screen Size

15"

Screen Mode

WXGA

Response Time

16 ms

Product Description:

Elo 1541L 15" Open-frame LCD Touchscreen Monitor - 16:9 - 16 ms - 15" Class - Surface Acoustic Wave - 1366 x 768 - WXGA - 16.7 Million Colors - 500:1 - 250 Nit - LED Backlight - DVI - USB - VGA - RoHS, China RoHS, WEEE - 3 Year

Explore all Elo 1541L Touchscreens

Add to Quote

Overview

Full specifications (PDF)

Elo 1541L Touchscreen Model Overview

The ELO 1541L 15-inch open-frame touchmonitor provides a convenient, space-saving design that is suitable for commercial, industrial, gaming and retail applications. Its compact mechanical design is easier and more flexible for system integrators to deploy touch solutions for gaming and amusement, information kiosks and self-service applications.

Elo E606625 Touchscreen Overview

Elo TouchSystems 1541L, one of the industry's first 15-inch open-frame LCD touchmonitors with an LED backlight, that features a 16:9 aspect ratio, suitable for commercial, industrial, gaming and retail applications. The 1541L expands the Elo family of touch solutions for gaming and amusement, information kiosks and self-service with flexible, energy-saving features. The 1541L also has a convenient, space-saving design that makes building touch solutions easier and more flexible for OEMs and system integrators.

Detailed Specs

Full specifications (PDF)

Technical Information

Screen Size Class:

15"

Viewable Screen Size:

15"

Screen Mode:

WXGA

Response Time:

16 ms

Aspect Ratio:

16:9

Horizontal Viewing Angle:

170°

Vertical Viewing Angle:

130°

Backlight Technology:

LED

Video

Maximum Resolution:

1366 x 768

Standard Refresh Rate:

60 Hz

Color Supported:

16.7 Million Colors

Contrast Ratio:

500:1

Brightness:

250 Nit

Touchscreen Information

Touchscreen:

Yes

Touchscreen Type:

Surface Acoustic Wave

Interfaces/Ports

DVI:

Yes

USB:

Yes

VGA:

Yes

Power Description

Input Voltage:

110 V AC
220 V AC

Operating Power Consumption:

15 W

Standby Power Consumption:

2 W

Off-Mode Power Consumption:

1 W

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

75 x 75

Height:

8.7"

Width:

14.8"

Depth:

1.8"

Weight (Approximate):

6.48 lb

Miscellaneous

Certifications & Standards:

C-Tick
cUL
IC
CCC
CE
VCCI
KCC
CoC
BSMI
UL
FCC
CB
IMERC

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
China RoHS
WEEE

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0013686010003, 0132017838472, 0741149327718

UPC: 013686010003, 132017838472, 741149327718

EAN: 0013686010003, 0132017838472, 0741149327718

UNSPSC: 43211903
