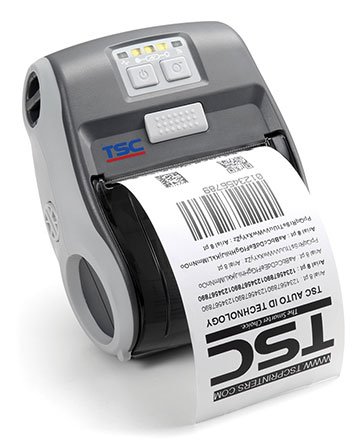

TSC Alpha-3R – Barcode Label Printer – 203 dpi – Direct Thermal – Linerless Platen
Part Number:
A30RP-A001-1011
Model:
Alpha-3R
Full specifications (PDF)
TSC Alpha-3R Receipt Printer Model Overview
The TSC Alpha-3R Portable Direct Thermal Printer is designed to simplify your mobile printing needs. With its IP54-rated environmental case, this durable printer is both dust and water-resistant, making it ideal for various applications including Direct Store Deliveries, Mobile Point-of-Sale systems, and Utility Billing. Featuring a robust plastic design with rubber over-mold construction, it can withstand drops of up to 1.5 meters, while its high-capacity 2500 mAh rechargeable battery provides over 30 hours of continuous printing on a single charge. Enjoy fast print speeds of up to 102 mm per second and large paper capacity to minimize roll changes.
Key features:
Specifications:
Key features:
- IP54-rated environmental case for dust and water resistance
- Sturdy plastic design with rubber over-mold for durability
- Wired & wireless communication interfaces: USB 2.0, RS-232, Bluetooth, and 802.11 a/b/g/n
- High capacity 2500 mAh rechargeable Li-ion battery for extended use
- High-speed processor delivering print speeds up to 102 mm (4") per second
- 2-year standard warranty for peace of mind
Specifications:
- Printer Model: Alpha-3R
- Printing Method: Direct Thermal
- Max. Print Speed: 102 mm (4")/second
- Max. Print Width: 72 mm (2.83")
- Max. Print Length: 2,286 mm (90")
- Physical Dimensions: 116 mm (W) x 148 mm (H) x 70 mm (D)
- Weight: 0.55 kg (1.212 lbs)
- Drop Specification: 1.5 m (5 ft)
- IP Rating: IP54 (with case)
- Max. Roll Capacity: Receipt: 57 mm (2.25") OD; Label: 55 mm (2.16") OD
- Memory: 4 MB Flash, 8 MB SDRAM
- Power: 2500 mAh Li-ion rechargeable battery
- Operating Temperature: -10~50 °C (32 ~ 104 °F), 10 ~ 90% non-condensing
- Storage Temperature: -40~60 °C (-40 ~ 140 °F), 10 ~ 93% non-condensing
- Warranty: 2 years for printer; 12 months or 25 km for print head
Brand
TSC
Model
Alpha-3R
Printer Options
Linerless Platen
Max Print Width
3 inch
Printer Type
Mobile
Printing Technology
Direct Thermal
Print Resolution
203 dpi
Interface Options
Bluetooth, USB, Wi-Fi.
