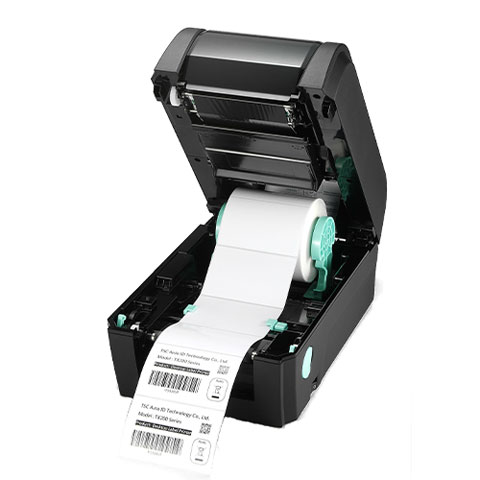

TSC TX310 – Barcode Label Printer – 300 dpi – Thermal Transfer – Real-Time Clock
Part Number:
TX310-A002-1201
Model:
TX310
Full specifications (PDF)
TSC TX310 Barcode Label Printer Model Overview
The TSC TX210 Series Desktop Barcode Printer is a robust and versatile solution tailored for various labeling needs, from high-volume shipping labels to intricate fine-jewelry tags. Engineered with a user-friendly design, this advanced printer simplifies the printing process with easy media and ribbon installations. Achieve impressive print speeds of up to 8 inches per second, coupled with the option for high-resolution graphics at 600 dpi. With its durable construction and dynamic remote management capabilities, the TX210 ensures efficient operation and superior performance in any commercial setting.
Key Features
Specifications
Key Features
- Dynamic Remote Printer Management: Supports SOTI Connect through Ethernet or Wi-Fi.
- Rugged Design: Durable double-wall housing and industrial-grade motor for reliable print quality.
- Multi-Connectivity: Wi-Fi enterprise certified and MFi certified Bluetooth.
- Easy-to-Use UI: Large LED icon panel and adjustable color LCD display for simple operation.
Specifications
- Model: TX210
- Resolution: 203 DPI (8 dots/mm)
- Printing method: Thermal Transfer and Direct Thermal
- Max. print speed: 203 mm (8")/second
- Max. print width: 108 mm (4.25")
- Max. print length: 25,400 mm (1000")
- Physical dimension: 226 mm (W) x 198 mm (H) x 332 mm (D)
- Weight: 3.75 kg (8.27 lbs)
- Label roll capacity: 127 mm (5") OD
- Ribbon: 300 m long, 1" core (ink coated outside)
- Processor: 32-bit RISC CPU
- Memory: 128 MB SDRAM, microSD card reader (up to 32 GB)
- Interface: USB 2.0, RS-232, USB Host, Ethernet
- Power: External universal switching power supply (DC 24V)
- Environment condition: Operating: 5-40°C, Storage: -40-60°C
Brand
TSC
Model
TX310
Printer Options
Real-Time Clock
Max Print Width
4 inch
Display Type
Color (Non-Touch)
Label Core Size
1 inch
Printer Type
Desktop
Printing Technology
Thermal Transfer
Print Resolution
300 dpi
Interface Options
Ethernet, USB, Serial
Questions? Get help from a
Printer Expert!
Printer Expert!
The TSC TX310-A002-1201 Barcode Label Printer is also known as
TSC-TX310A0021201
or TX310A0021201.
